Yamaha WaveRunner VX700/VX700 F2V Service Manual

This comprehensive service manual provides complete maintenance, diagnostic, and repair information for Yamaha WaveRunner VX700 and VX700 F2V personal watercraft, powered by the Yamaha Marine MR-1 702cc two-cylinder two-stroke engine. Written by Yamaha marine experts, this detailed guide delivers factory-specified procedures and technical specifications essential for professional service and maintenance.

Technical Coverage

• Complete engine servicing procedures for the MR-1 702cc powerplant including 76mm bore x 77mm stroke measurements, 8.4:1 compression ratio testing, and YPVS power valve adjustments
• Detailed fuel system maintenance including Mikuni SBN-38 dual carburetors, 21L fuel tank service, and precise carburetor synchronization
• Electrical system diagnostics with CDI ignition system specs, 12V electrical system wiring diagrams, and multifunction display troubleshooting
• SMC (Sheet Molding Compound) hull and deck repair procedures including gelcoat repair and 3-layer composite structure integrity checks
• 155mm axial-flow jet pump service including 3-blade stainless steel impeller inspection, wear ring clearance specs (0.2-0.5mm), and driveshaft alignment
• Cable-actuated steering system maintenance with 23° port/starboard turning radius specifications
• Complete disassembly and reassembly sequences with factory torque specifications for critical fasteners

Manual Features

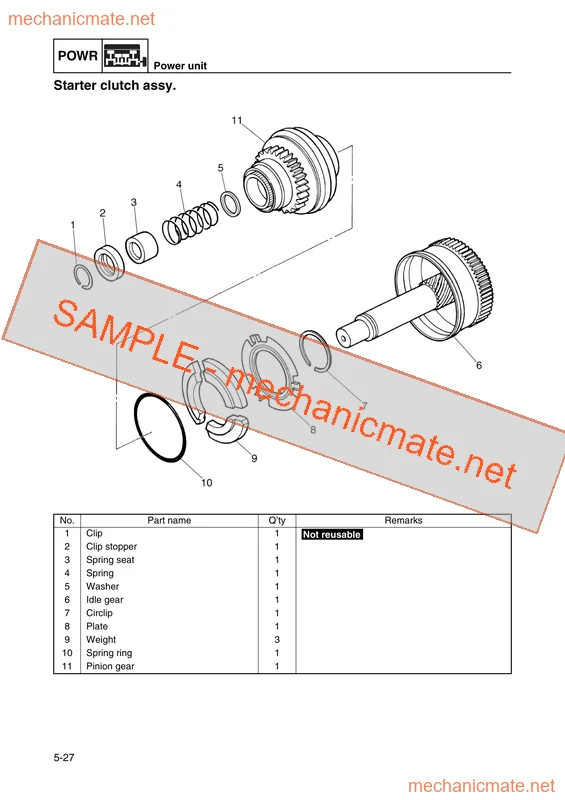

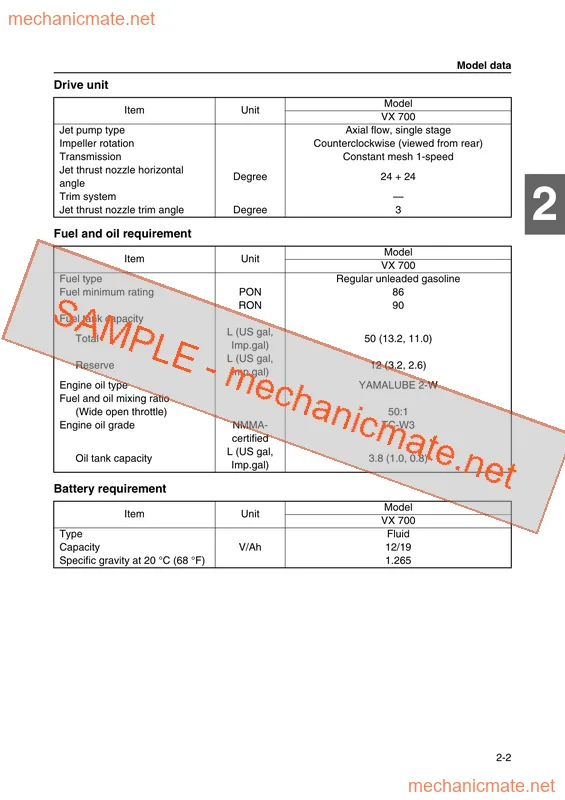

• Factory-accurate exploded view diagrams and detailed photographs of all major components
• Step-by-step repair procedures with OEM specifications and tolerances
• Comprehensive troubleshooting guides for all systems including closed-loop cooling and electrical
• Essential maintenance schedules including 10/50/100-hour service intervals
• Critical safety information including USCG requirements and navigation light specifications
• Complete parts identification with Yamaha-specific part numbers and reference tables

Professional Applications

This manual is an indispensable resource for marine service technicians, repair facilities, and experienced owners performing maintenance. The detailed procedures cover all aspects from the dual-carburetor fuel system to the 155mm high-pressure jet pump assembly. All information adheres to factory specifications and includes the latest technical updates and service bulletins for the VX700 platform.

Written in clear, technical language with precise measurements and specifications, this manual provides the expertise needed for both routine maintenance and complex repairs. Each procedure is carefully documented to ensure professional-quality results and maintain warranty compliance while working with the MR-1 powerplant and Yamaha marine-specific systems.
