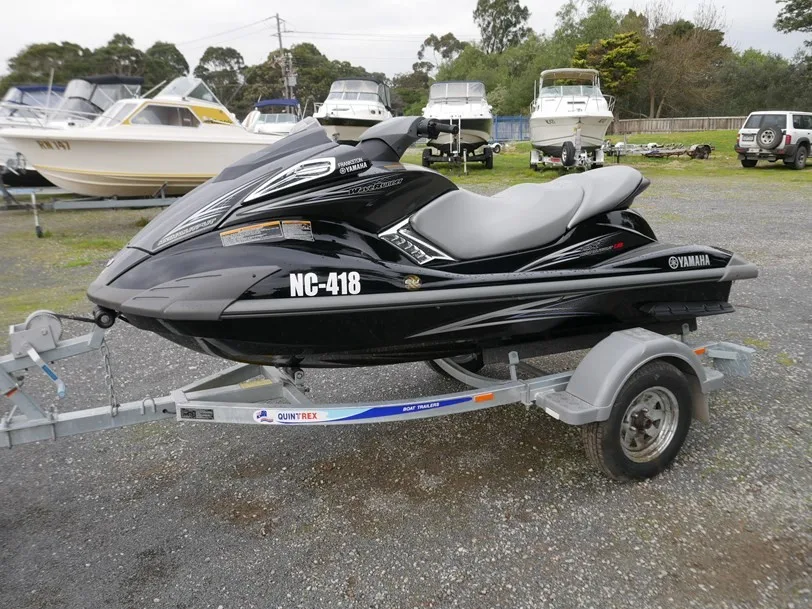

Yamaha WaveRunner FX140 2053 Service Manual - Complete Repair Guide
Yamaha WaveRunner FX140 2053 Service Manual - Complete Repair Guide - Image 2
Yamaha WaveRunner FX140 2053 Service Manual - Complete Repair Guide - Image 3

Yamaha WaveRunner FX140 2053 Service Manual – Complete Repair Guide

(11 customer reviews)
$30.34

Professional Yamaha waverunner fx140 1cda Service Manual for 2053 with complete technical specifications, repair procedures, and detailed diagrams. Instant PDF download.

MechanicMate – Vehicle Workshop Manuals
What Our Clients Say
4.19 rating (9192 reviews)
Category:
Tags: , , , , , ,

Description

Yamaha WaveRunner FX140 1CDA Service Manual (2053 Models)

This comprehensive factory service manual provides detailed maintenance and repair information for the 2053 Yamaha WaveRunner FX140 1CDA personal watercraft, featuring the MR-1 1052cc four-stroke marine engine. Written by Yamaha’s technical experts, this manual delivers professional-grade technical specifications, diagnostic procedures, and step-by-step repair instructions essential for proper maintenance and restoration.

Technical Coverage

  • Complete engine service procedures, including:
    • DOHC 4-valve per cylinder specifications (16 valves total)
    • Valve clearance specs: Intake 0.11-0.20mm, Exhaust 0.16-0.25mm
    • Multi-point electronic fuel injection (EFI) calibration
    • Closed-loop cooling system maintenance (155°F thermostat)
  • Detailed electrical system diagnostics:
    • Digital ignition system with 3D mapping
    • Multi-function LCD information center troubleshooting
    • Engine management system (EMS) diagnostic codes
    • 12V electrical system with 19-amp charging system
  • Propulsion and jet pump service:
    • 155mm axial-flow, single-stage jet pump specifications
    • Stainless steel impeller (pitch and clearance data)
    • Variable trim system (VTS) calibration
    • Pump bearing and seal replacement procedures
  • Hull and deck maintenance:
    • NanoXcel hull material repair procedures
    • Hull thickness specifications (bow: 4.5mm, stern: 5.2mm)
    • Quick-drain bilge system service
    • Yamaha Security System (Y.E.S.S.) programming

Professional Features

This factory-authorized manual includes precise torque specifications, detailed assembly diagrams, and comprehensive troubleshooting guides. Marine technicians will find essential diagnostic tools, including vacuum testing procedures, compression specifications (standard: 180 PSI), and electrical testing parameters for the digital management system.

Technical Specifications

  • Off-Power Assisted Steering (OPAS) system calibration
  • Yamaha Engine Management System (YEMS) diagnostics
  • Dual mirror-lens multi-function meters service
  • Remote transmitter programming procedures
  • Low-RPM mode and security system protocols

Designed for professional marine technicians, this manual provides the detailed information needed for proper service and maintenance of the Yamaha WaveRunner FX140 1CDA. All procedures conform to Yamaha Marine’s technical standards and specifications, including USCG and ABYC compliance requirements.
