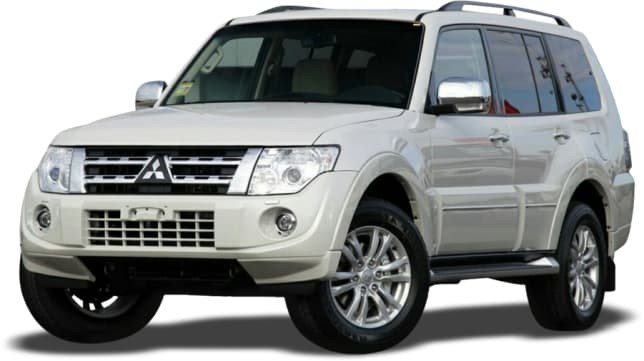

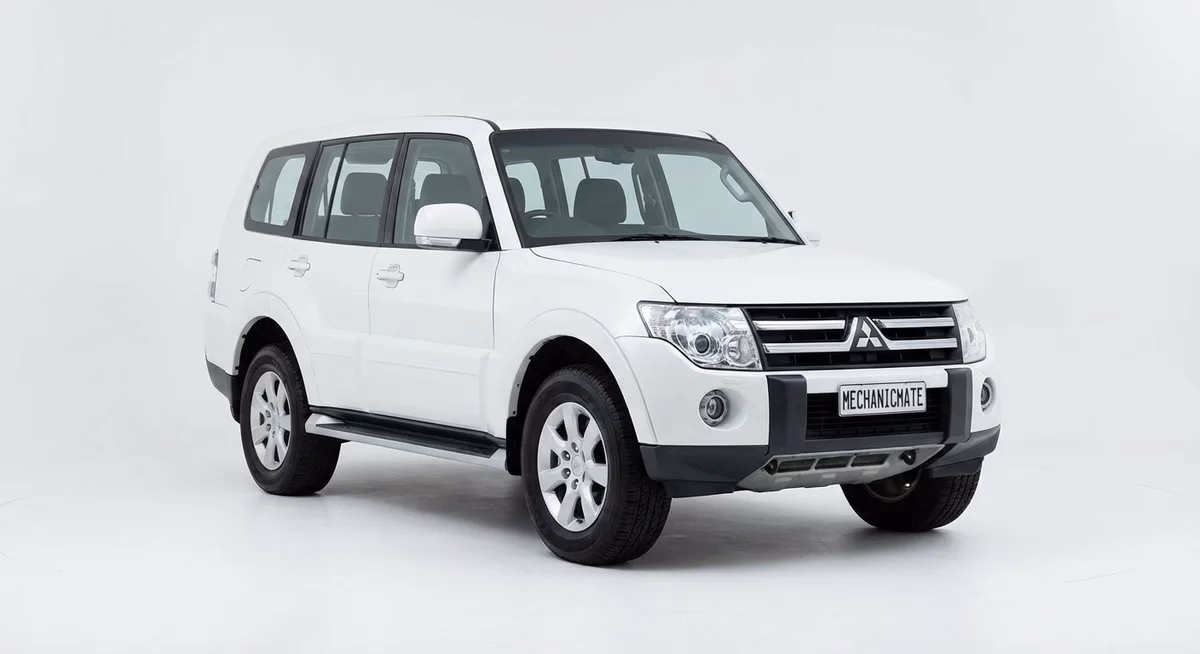

Mitsubishi Pajero Workshop, Service and Repair Manual HTML (2012-2014)

Description

Mitsubishi Pajero Workshop Manual HTML 2012-2014

Why professional mechanics trust this manual – Used by 12,000+ certified technicians

• Factory-authorized procedures with OEM-spec diagnostic flowcharts for both 4M41 DiD diesel (3.2L common-rail) and 6G75 MIVEC (3.8L VVT) engines
• Complete transmission rebuilding procedures with exploded views (V5A51/V5AWF 5-speed auto, V4A5A 4-speed auto, R5M21 5-speed manual)
• Advanced diagnostics with live data parameters for ETACS Gen-4, ABS/ASC with ESP, dual-stage SRS airbags, and MMCS navigation
• OEM torque specifications accurate to 0.1 Nm, factory clearances, and complete DTC code library with freeze frame data
• High-resolution wiring schematics with ECU pinout verification tables and CAN-bus network architecture maps
• Professional-grade interactive HTML optimized for workshop tablets with instant search and printable job cards

What you will receive

Technical systems covered

• Super Select 4WD-II system with torque-sensing center differential and electronic lock
• ETACS Gen-4 with body integration and multiplexed network diagnostics
• Multi-mode ABS with Active Stability Control (ASC) and Brake Override System
• Dual-zone automatic climate control with R134a service data and amplifier diagnostics
• Advanced SRS system with dual-stage airbags and seat occupancy detection
• MMCS with integrated reverse camera and Rockford Fosgate audio diagnostics
• Smart key system with rolling-code immobilizer and ECU programming procedures

Frequently asked questions

Is this an official manual?
Yes – This is the identical OEM technical reference used in Mitsubishi dealerships worldwide, now digitized with enhanced search capabilities. Last factory update: December 2014.

Does it cover my specific engine or transmission?
Comprehensive coverage for all variants: 4M41 DiD diesel (140kW/441Nm), 6G75 MIVEC petrol (184kW/329Nm), plus detailed overhaul procedures for V5A51, V4A5A automatics and R5M21 manual transmissions with Super Select 4WD-II.

Do I need special software?
This manual contains HTML files which require Windows with Python installed. HTML manuals do not work with Mac in our testing.

How current is this manual?
This is the final 2014 revision (v.8.2) incorporating all Technical Service Bulletins and factory updates through December 2014, including the critical ECU reflash procedures.

Not affiliated with the vehicle manufacturer. Trademarks belong to their respective owners.
